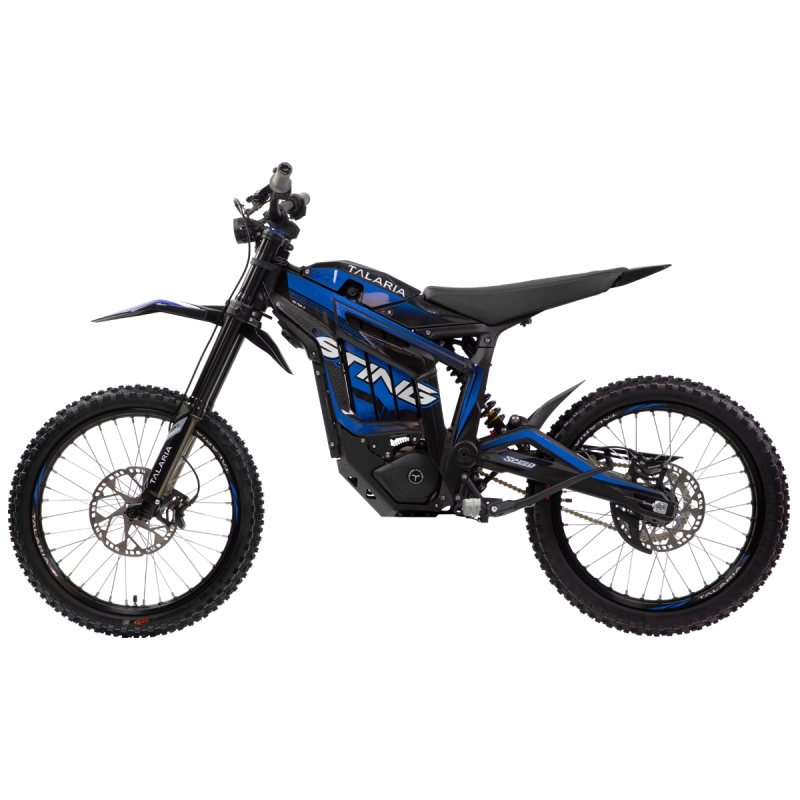

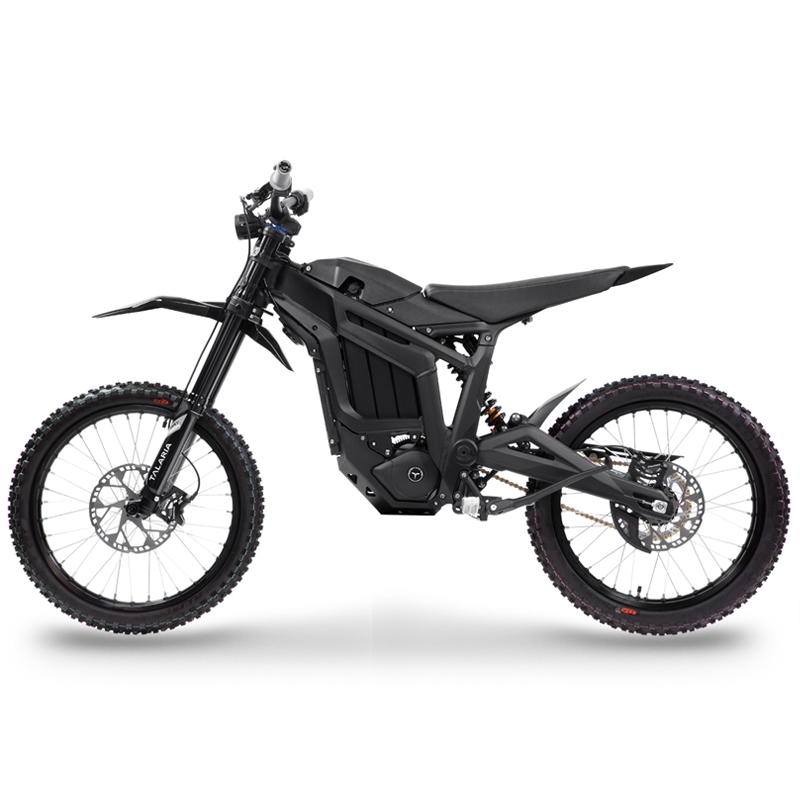

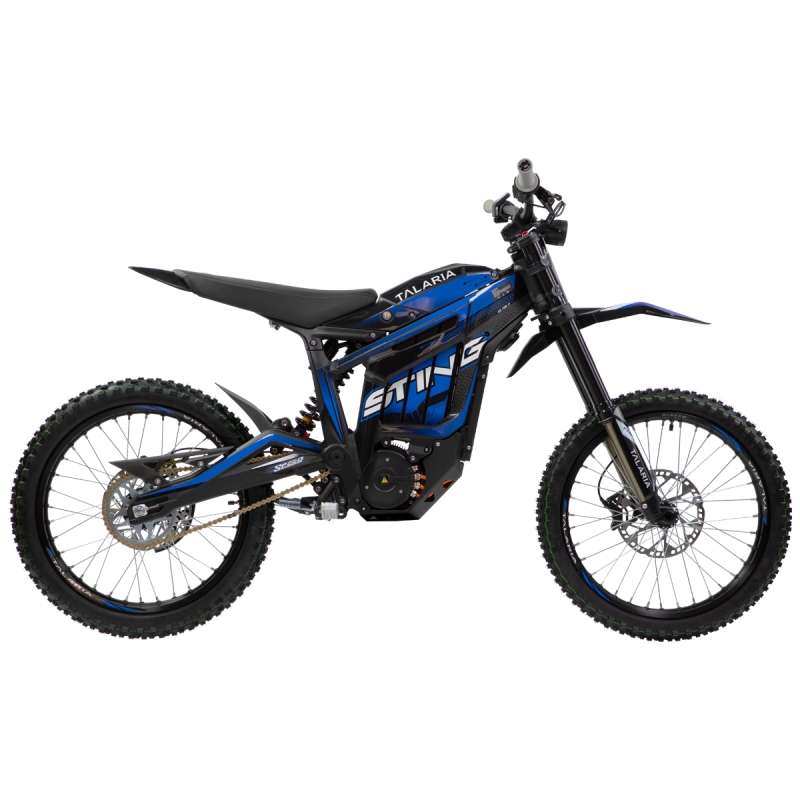

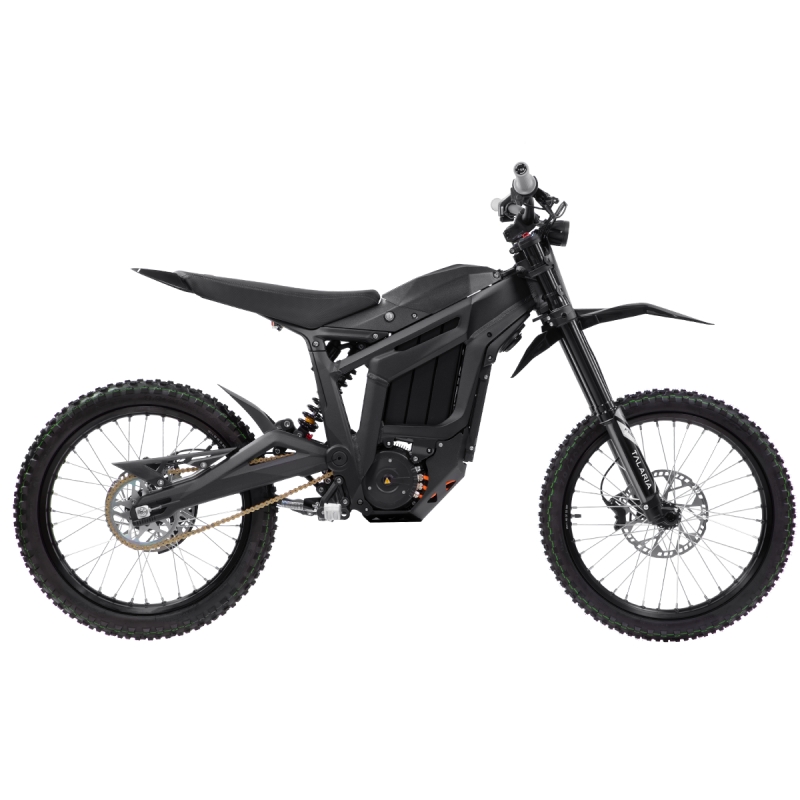

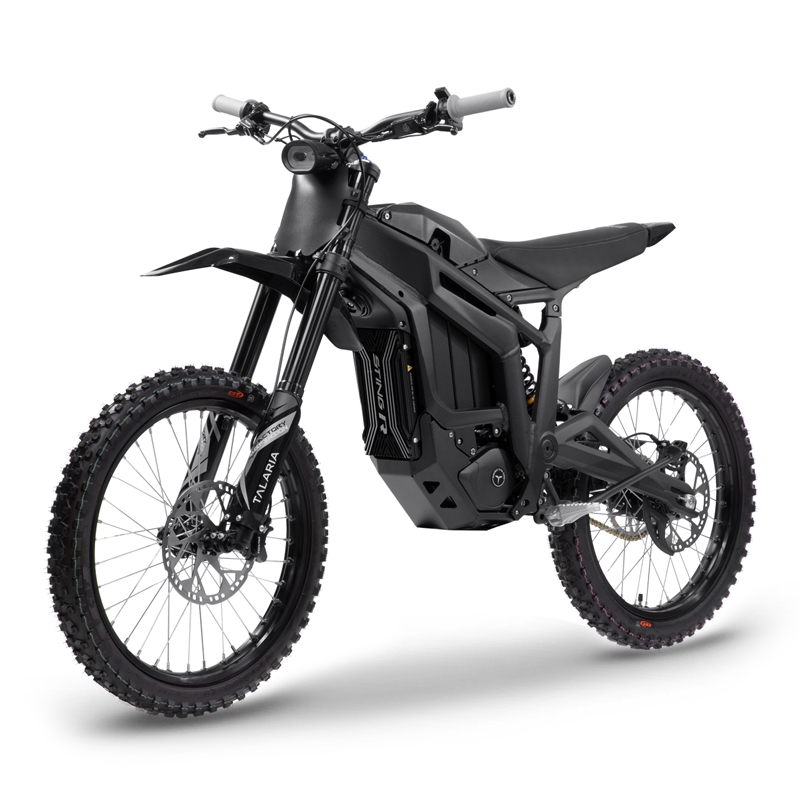

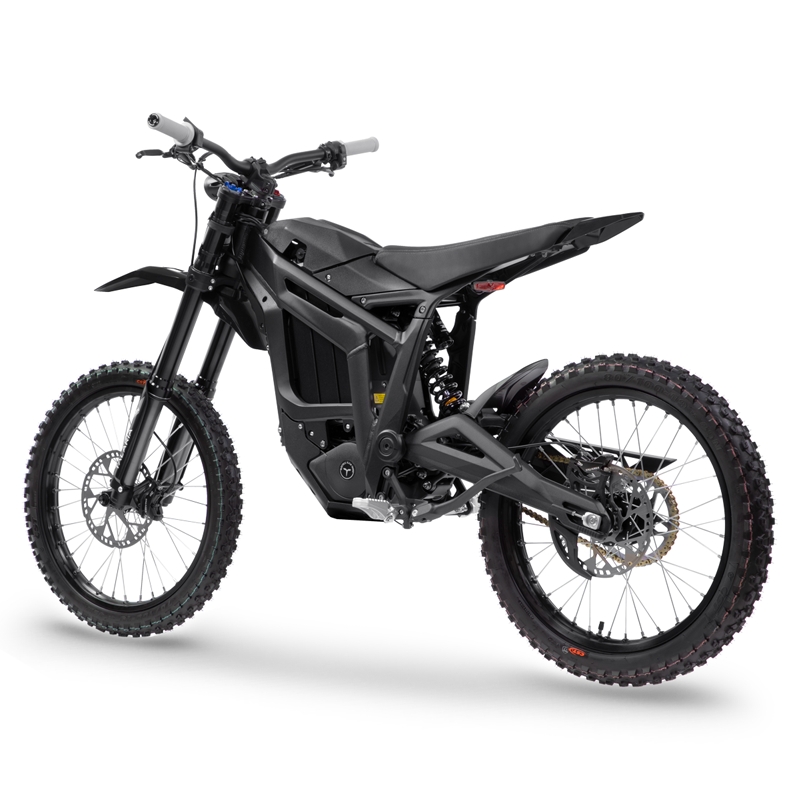

TALARIA STING R MX4

TALARIA STING R MX4 HIGHLIGHT

• +10% Peak Power over the 2023 Talaria Sting R MX4
• 45AH Improved Battery offering best-in-class range and battery life
• Gearbox providing silent and reliable power transmission (No belt to change)
• Regenerative Braking (Can be adjusted easily on the display for optimum performances)
• Fast Charging Time (3 Hours)
• Improved Battery Connector
• Braking System : 220mm Upgraded Brake Rotors
• DC IPM Improved Motor with 94% efficiency
• Suspension : Fastace or Talaria Factory
• Rear Brake Disc Guard
• Upgraded 125 Amp circuit breaker

WARRANTY

Talaria will pay for all material costs associated with repairing or replacing any part or accessory that is found to be defective in material during normal use and maintenance. This limited warranty applies only to the initial retail customer. This limited warranty is valid for one year after the original retail sale date of a new Talaria from an authorized dealer.

DISPLAY

The dash features a high-contrast OLED display that provides riders with useful information while consuming little electricity. With this link, the dash may communicate with the battery pack’s BMS and motor controller. The display menu displays a number of statistics, including top/average speed, range, battery data, riding mode, fault codes, regen level, and more. The dash is also adjustable, with options for wheel size, sprocket size, engine regen levels, and toggling between KM/H and MPH to increase the bike’s compatibility.

BATTERY

TALARIA STING R battery is a 60V 45Ah lithium-ion pack with a capacity of 2700 watt-hours that can be easily replaced. In seconds, the power packs may be swapped out for another fully charged power pack, enabling an infinite range. This battery pack, which includes electric automotive grade LG 21700 lithium-ion battery cells, a cutting-edge programmable BMS, and an optimized interior structure, ensures that the bike provides safe, high-performance off-road riding.

Included Upgrades:

• 220mm x 2.3mm thick rotors both front and rear (stock is 203mm x 2mm)
• Upgraded Brake Pads
• 4 Piston Hydraulic Brakes
• Improved throttle and tuning for smooth and predictable response
• The motor has an encoder (instead of hall sensors) for ultra smooth throttle response.
• Improved and strengthened Gear box (oil only needs to be changed every 3-5 thousand miles)
• IPM Motor Rated for High Power and 94% efficiency
• Thick 3.25 inch rear tire
• 45Ah 60v battery with LG 21700 Cells
• Rear Brake Rotor Protector
• Foot Peg Support Brace
• Full wrap sticker kit (not installed)
• Higo connectors on the ebrake shut off for easy disconnect
• OLED full function display
• Rear Brake Rotor Guard
• Talaria or Fast Ace fork (depending on supply) upgrades any of the forks it uses to customize them for this bike.

OTHER FEATURES

• 12 Amp battery charger
• 4 position Regenerative braking which you can adjust while riding
• 145 pounds

Improved Braking System

Talaria recognizes that if they want to make their bike faster and more powerful, they must upgrade the brake system. First and foremost, they picked larger and thicker rotors for the front and rear. 220mm x 2.3mm, up from 203mm x 2.0mm previously. This results in 20% improved stopping power and heat dissipation. The brake pads have been updated to be more durable and squeak-free. Four levels of regenerative braking that can be adjusted on the fly increase the bike’s efficiency and minimize the load on the mechanical braking system. By properly applying regenerative braking, you can increase your range by up to 5% while considerably decreasing brake wear and tear.
